50mm Hooded Twin Wheel Castor - UNF Thread & Expanding Socket - Tube Fitting
A 50mm diameter castor with a hood that covers the twin wheels is equipped with a 3/8 UNF threaded stem and socket set that is made for furniture with vertical steel frames or legs, such as office furniture and household equipment including cabinets, desks, tables, and trollies. This can be done with tube wall thicknesses ranging from 0.9mm to 1.6mm and various internal diameters using an expanding socket.
TW50-UNF
Features

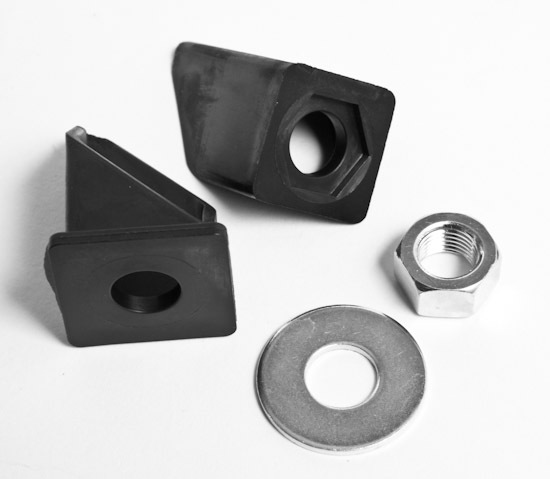

- Castor wheels come complete with an expanding connecting socket to suit your tube dimensions within the specified range - see product specifications.
- Expanding sockets work with a range of tube dimensions, so you don't need to search for an exact match.
- The castor's threaded stem screws into the expanding socket nut.
- The swivelling functionality of the castor wheel enables furniture to be pushed and pulled in any direction.
Specifications
- Wheel diameter: 50mm
- Wheel type: nylon hooded twin wheel
- Mount height: 65mm
- Swivel radius: 56mm
- Fitting: 3/8 UNF x 50mm Expanding Fitting
- 25mm of the castor's pintle stem is threaded so that the castor screws into the expanding socket nut.
- Socket: refer to the 'Option' selection list above
- Load capacity: 30kg per castor
- Work out the weight of your furniture, including any contents, to determine your required load capacity. Then, divide the total weight of your furniture and contents by the individual weight capacity of the castors you plan to use. A 150-kilogram unit requires a minimum of five 30-kilogram maximum capacity castor wheels.
- Important note: the 3/8 UNF is a fine-pitch thread with more threads per inch; it will not work with the 3/8 BSW.
