65mm Metal Ball Castor - UNF Thread & Expanding Socket - Tube Fitting

65mm Metal Ball Castor - UNF Thread & Expanding Socket - Tube Fitting

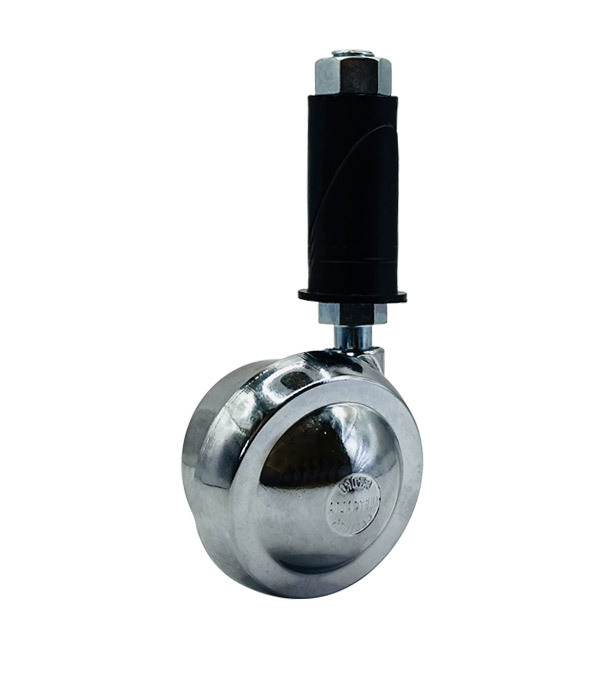

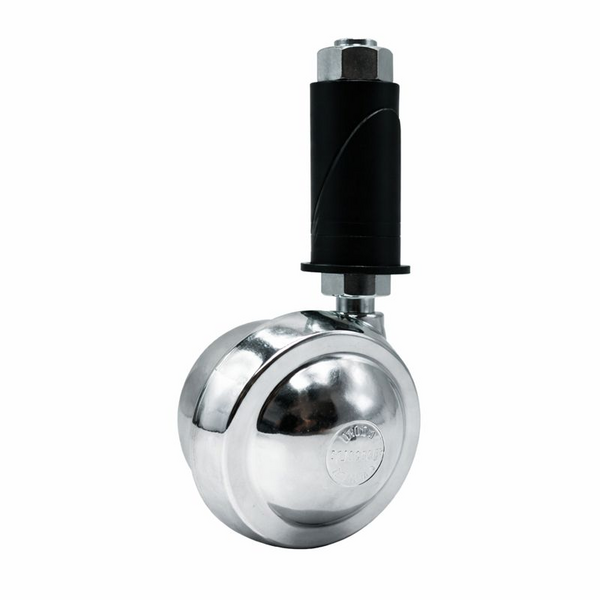

This high-quality metal ball castor has a diameter of 65mm and comes with a 3/8 UNF threaded stem and socket set that is specifically designed for furniture with vertical metal tube frames or legs. It is perfect for use in a range of settings, including offices, households, and commercial spaces, and can be easily attached to a variety of furniture pieces such as cabinets, desks, tables, and trolleys.

BCHR65-UNF
Option:
[{"colour":"","code":"BC65CHR-4T1","size":"T1 Expanding Nylon ROUND Socket Outside Diameter: 19mm","price":26.26,"qty":9999,"pid":5580010,"style":"| Tube Thickness: 0.9 - 1.6mm | Inside Diameter: 17.2-15.8mm","disabled":false,"imgsrc":"/images/636766/pid5580009/50mm-Metal-Ball-Castor-UNF.jpg","title":"65mm Metal Ball Castor - UNF Thread & Expanding Socket - Tube Fitting"},{"colour":"","code":"BC65CHR-4T2","size":"T2 Expanding Nylon ROUND Socket Outside Diameter: 22mm","price":26.26,"qty":9999,"pid":5580011,"style":"| Tube Thickness: 0.9 - 1.6mm | Inside Diameter: 20.2 - 18.8mm","disabled":false,"imgsrc":"/images/636766/pid5580009/50mm-Metal-Ball-Castor-UNF.jpg","title":"65mm Metal Ball Castor - UNF Thread & Expanding Socket - Tube Fitting"},{"colour":"","code":"BC65CHR-4T3","size":"T3 Expanding Nylon ROUND Socket Outside Diameter: 25.4mm","price":26.26,"qty":9999,"pid":5580012,"style":"| Tube Thickness: 0.9 - 1.6mm | Inside Diameter: 23.6 - 22.2mm","disabled":false,"imgsrc":"/images/636766/pid5580009/50mm-Metal-Ball-Castor-UNF.jpg","title":"65mm Metal Ball Castor - UNF Thread & Expanding Socket - Tube Fitting"},{"colour":"","code":"BC65CHR-4T4","size":"T4 Expanding Metal ROUND Socket Outside Diameter: 32mm","price":26.37,"qty":9999,"pid":5580013,"style":"| Tube Thickness: 0.9 - 1.6mm | Inside Diameter: 30.2 - 28.8mm","disabled":false,"imgsrc":"/images/636766/pid5580009/50mm-Metal-Ball-Castor-UNF.jpg","title":"65mm Metal Ball Castor - UNF Thread & Expanding Socket - Tube Fitting"}]
Select Left or Right Hand Ball Castor:
Purchase Qty:


Metal Ball Castor Wheel Correct Layout of Left and Right WheelsAttaching 4 right and left hand metal ball castor wheels to a round furniture baseAttaching 6 or more right and left hand metal ball castor wheels

  • An expanding socket size of your choice is supplied with your Metal Ball Castor - see product specifications.
  • Expanding sockes have the ability to fit tubes with wall thicknesses ranging from 0.9mm to 1.6mm and various internal diameters.
  • The metal castor wheel is made from high-quality zinc alloy, ensuring that it is both durable and long-lasting.
  • It is the perfect choice for anyone looking for a reliable castor that will last for years to come.
  • Wheel diameter: 65mm
  • Wheel type: metal ball castor
  • Mount height: 77mm
  • Swivel radius: 55mm
  • Fitting: 3/8" UNF x 50mm Expanding Fitting
    • 25mm of the castor's pintle stem is threaded so that the castor screws into the expanding socket nut.
  • Socket: refer to the 'Option' selection list above
  • Load capacity: 45kg per castor
    • Work out the weight of your furniture, including any contents, to determine your required load capacity. Then, divide the total weight of your furniture and contents by the individual weight capacity of the castors you plan to use. A 150-kilogram unit requires a minimum of four 45-kilogram maximum capacity castor wheels.
  • Important note: the 3/8 UNF is a fine-pitch thread with more threads per inch; it will not work with the 3/8 BSW.

View your shopping basket or Browse other items in Metal Ball Castors.
